358 Security Fencing

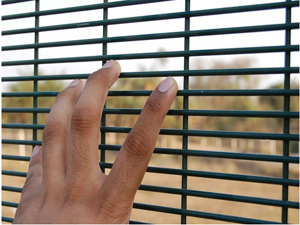

The 358 security mesh panels are manufactured in a mesh pattern of 76.2mm x 12.7mm using 4mm diameter vertical and horizontal wires which are resistance welded at each intersection. This method of construction produces a panel that is both formidable in strength and appearance.

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.The mesh apertures provide see through visibility but ensure that the fence is difficult to climb as it doesn´t provide finger or toe holds and is also extremely difficult to cut. 358 mesh panel fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.

Resistance to burrowing and climbing For high security areas a concrete sill can be specified to deter efforts to burrow beneath the fence line or alternatively the panel can be supplied extended by 300mm in base for burying below the ground.

Panels Posts
Fence Panel Size section O/A Length Total number of fixings
Height Height/Width     Inters- 1 Clamp bar Corners- 2 Clamp bars
2.0m 2007 x 2515mm 80x60x2.5mm 2700mm 7 14
2.4m 2400 x 2515mm 80x60x2.5mm 3100mm 9 18
3.0m 2997 x 2515mm 80x80x2.5mm 3800mm 11 22
3.3m 3302 x 2515mm 80x80x2.5mm 4200mm 12 24
3.6m 3607 x 2515mm 100x60x3mm 4500mm 13
3.6m 3607 x 2515mm 100x100x3mm 4500mm   26

Features:

  • Anti-climb: More small openings, no toe or finger holds.
  • Anti-cut: robust wire and welded joints make cutting very difficult.
  • High-strength: The superior welding technique and process control create a stronger fusion between the wires.

Finish treatment: There are two treatment types: hot dipped galvanized and plastic coated.
The colors of plastic coated are mainly green and black. Each color is available according to your require.

Post type:

The post type is main square post. The feet are combined with cement support with the rivet.

Applications:

  • Bridge anti-climb guarding & guard safety screening
  • Psychiatric hospital security fencing
  • Prison security fencing
  • Factory machine guards
  • Walkway security fencing
  • Airport security fencing
  • Shipping Port Security fencing
  • Electrical sub-station fencing
  • Gas pipelines security fence
  • High security living area and private field fence.

358 Security Fencing358 Security Fencing

358 Security Fencing358 Security Fencing


If you need to consult the price, please contact the business department by e-mail:

info@wersonfence.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
